A 367 ton steel cylinder was lowered into a concrete shaft on Egypt’s Mediterranean coast, and the crew had to seat the reactor vessel to within the thickness of a sheet of paper

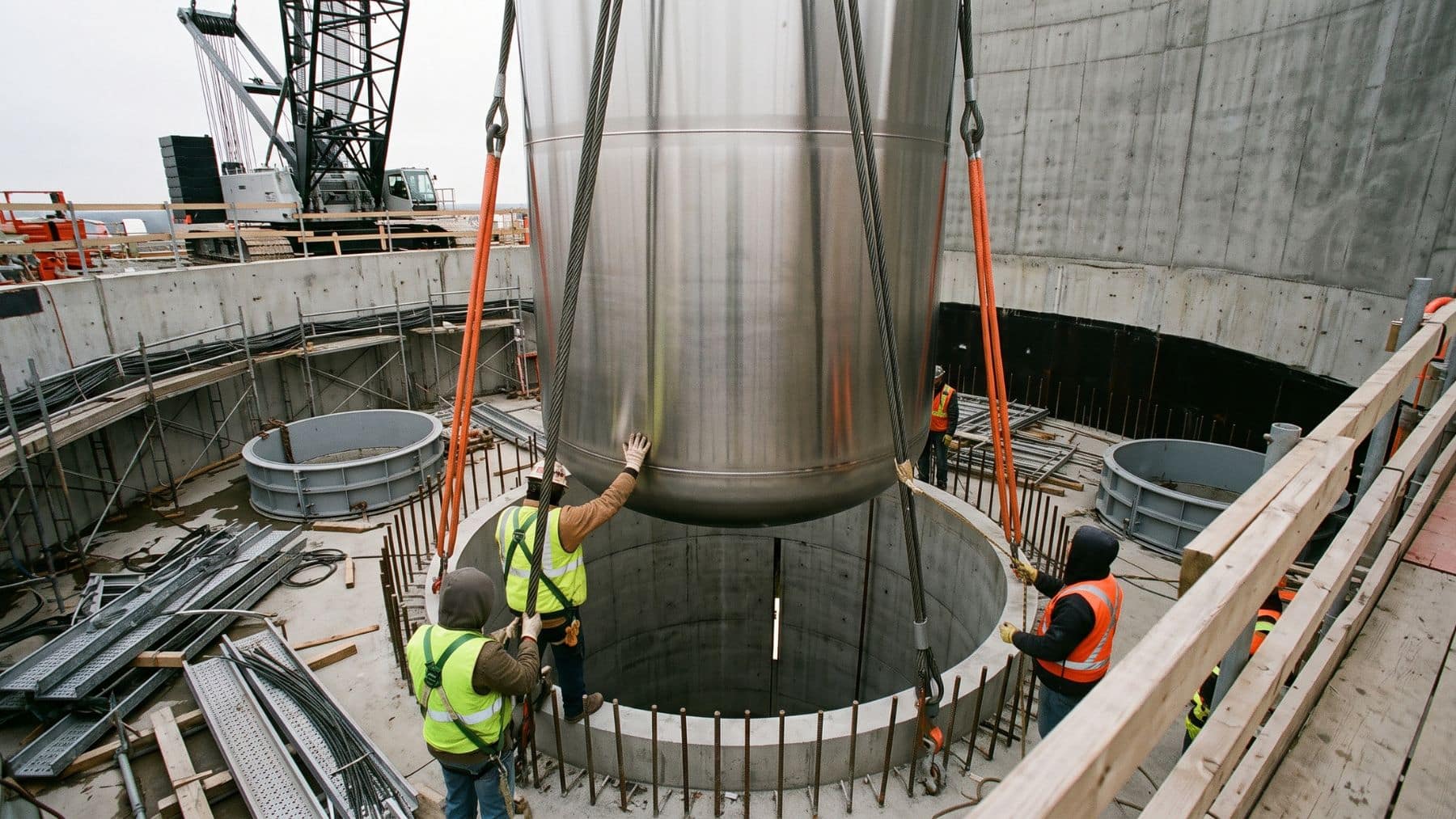

The cylinder hangs level, a few feet above an open concrete shaft.
It is 43 feet long, about 15 feet across, and it weighs 367 tons.
The shaft below is barely wider than the cylinder.
For now there is a steel cylinder in a concrete shaft on a coast that had nothing, placed to a machinist’s tolerance and not due to move again until the 2080s.
The crane can lift four times that load, and that was never the difficult part.
The difficult part is that the thing has to come to rest within four thousandths of an inch of where the drawing says.
That is the thickness of paper.
Why four thousandths of an inch matters on something this heavy
Once it is down, it never moves again. Everything else in that building takes its position from this cylinder, and the pipes that carry coolant in and out have to meet its nozzles at the angle the drawing promised.
Those welds have no room to argue.
Set it a fraction out of true and nothing downstream is wrong enough to see. It is wrong enough to matter. Every pipe joint then carries a load it was never designed for, for as long as the plant runs.
So the tolerance is not engineering vanity. It is the last chance anybody gets to put the thing in the right place, because after this the concrete closes around it and the next decision is made with a cutting torch.
What this cylinder does that nothing else in the plant can
It is not a boiler. It is a pressure vessel, and the difference is the whole design.
Inside it, uranium atoms split. The heat and pressure that follow are held by the steel wall, and that wall spends its life being hit by neutrons from the core.
Neutrons make steel brittle over time. Slowly, from the inside out.
Every startup and shutdown adds a thermal stress on top, and the metal has to take it without cracking. Which is why the alloy is chosen for how it welds and survives, not for strength alone.
The initial service life is sixty years, with possible extension to eighty. Almost everything else in a nuclear plant can be replaced along the way. Pumps, turbines, whole steam circuits.
This one cannot, which is why the schedule bends around getting it seated.
Two thousand tons in one hull, from a pier on the Don
The vessel was forged at a plant in Volgodonsk, on the lower Don, which has made nuclear components for decades. It left from the factory’s own pier.
The ship was a river and sea design, able to run inland waterways and open water on the same hull, so the cargo reached Egypt with no transfer. Egypt built a port at the site for exactly this, infrastructure that did not exist before the project began.
The cargo came to 2,000 tons. This vessel, four steam generators and a pressurizer, in a single delivery the builder calls the largest it has sent to one plant.
The ship docked in May. The cylinder went into the second unit’s shaft on the ninth of July, lifted by a crawler crane rated at 1,490 tons.
Egypt’s minister of electricity described it as one of the most critical components in a nuclear plant, the piece that houses the core.
The second reactor on a continent that has had one
Africa has had exactly one nuclear power station for four decades, on the South African coast, its first unit reaching the grid in the spring of 1984. El Dabaa will be the second.
Worth being precise, because the anniversary framing gets used loosely.
This cylinder is not the continent’s first reactor vessel in forty years. That one went into the unit next door eight months earlier, from a different factory and by a different route.
Egypt is building four units of the same design, each rated at 1,200 megawatts, for 4,800 megawatts. The site sits in Matrouh Governorate, roughly 200 miles northwest of Cairo, where the desert runs into the Mediterranean.
Welding of the main coolant pipeline comes next, and that painstaking work is where a leak stops being a maintenance question and becomes a safety one.
What Egypt has signed up to for the next sixty years
More than 25,000 people work the site daily, over 18,000 of them Egyptian, a figure the builder’s chief executive gave. That is a national workforce being assembled in real time.
The same contract has the builder assisting with operation and maintenance for ten years and supplying fuel across the plant’s entire life, with used fuel stored on site.
Egypt’s target is for nuclear to cover 9 percent of its electricity by 2030, and grid connection is aimed at 2028. Which puts the dependency question in plain view rather than in the fine print.
Other African grids are watching the arithmetic closely, and at least one has said it wants a plant of its own inside a decade.
For now there is a steel cylinder in a concrete shaft on a coast that had nothing, placed to a machinist’s tolerance and not due to move again until the 2080s.
