Precision Under Pressure: How Waterjet Cutting Is Powering Safer Oil and Gas Operations

by Energies Media Staff
May 6, 2025
in News
Under Pressure

Texas Consultancy Develops AI to Address Project Challenges in the U.S. Energy Sector

A Critical Mineral at a Critical Moment: The Importance of Restoring Domestic Tungsten Production in the U.S.

In a world where steel pipelines run deep into the seabed and flammable gases move under crushing pressure, precision isn’t a luxury — it’s survival. Waterjet cutting, a technology once limited to soft materials, has carved out a niche in the most unforgiving environments of the oil and gas industry.

Waterjet cutting is a machining process that uses a high-pressure stream of water — sometimes combined with an abrasive — to cut through materials without heat or flames. In oil and gas, where the risk of ignition is constant and materials are tough and thick, this cold-cutting method is not just useful — it’s often the safest option.

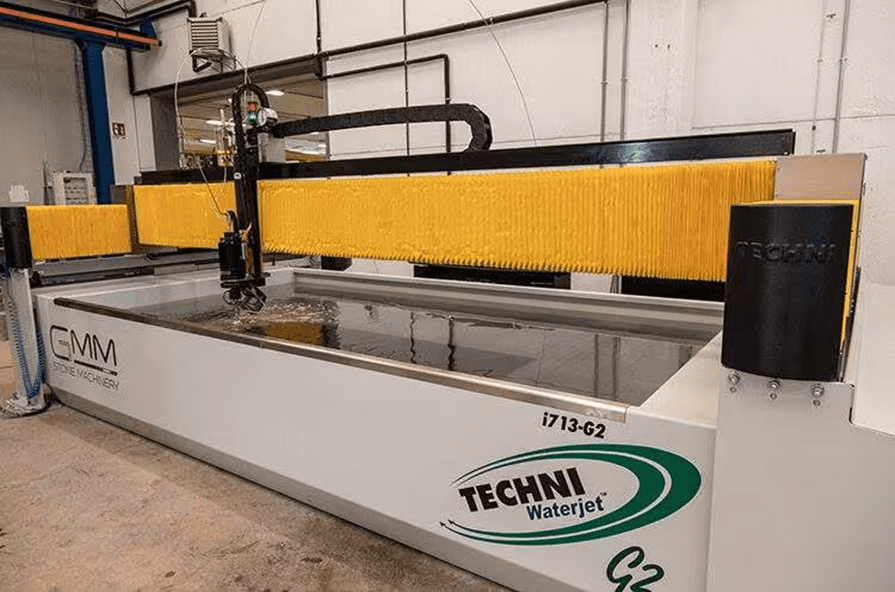

Solutions like TECHNI Waterjet systems are engineered specifically for these high-risk environments, delivering precision and reliability where it matters most.

InventU
InventU

Whether you’re cutting down old subsea platforms or preparing flanges for high-integrity pipelines, waterjet cutting offers a rare balance of accuracy, safety, and versatility under pressure.

What makes waterjet cutting ideal for oil and gas operations?

The oil and gas industry operates under relentless pressure—literally and figuratively. Equipment must endure corrosion, extreme temperatures, and remote locations where mistakes aren’t just costly, but dangerous. Add to that the flammability of hydrocarbons, and it’s clear: traditional cutting methods can pose significant hazards.

Thermal methods like plasma or oxy-fuel cutting generate heat, sparks, and sometimes flames — a nightmare in explosive zones. Waterjet cutting, by contrast, is a cold cutting technique. It doesn’t produce any heat-affected zones (HAZ), making it safe for operations in volatile environments.

Safety aside, waterjet systems excel in cutting a wide variety of materials — even layered composites or rubber-lined pipes — without deformation. They’re also environmentally cleaner, producing no fumes, no slag, and minimal waste.

How does waterjet cutting work?

Precision Under Pressure

Waterjet cutting might seem deceptively simple — it’s just water, right? But under the hood, it’s a precise orchestration of fluid dynamics, abrasive physics, and machine control.

Here’s how the process typically unfolds:

  • Pressurization of water
    Ultra-high-pressure pumps force water to pressures as high as 90,000 PSI.
  • Addition of abrasive (if applicable)
    For cutting metals and tough materials, garnet abrasive is introduced into the water stream.

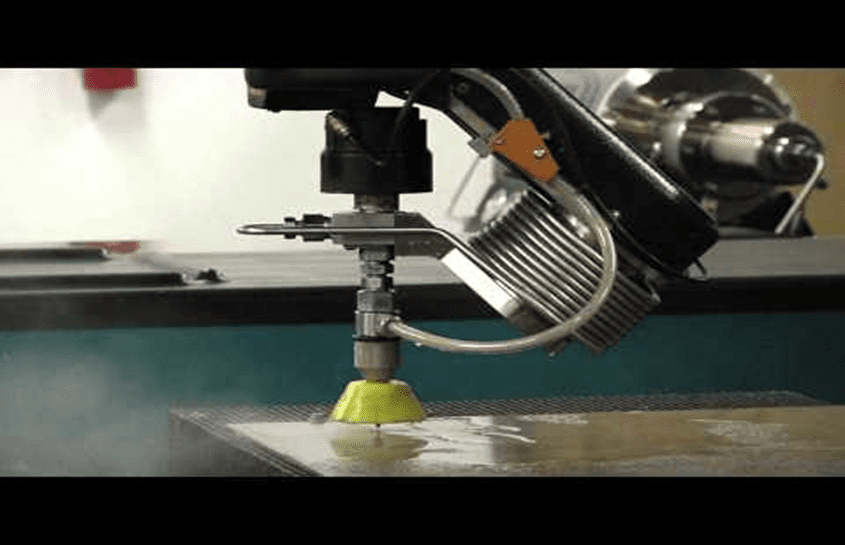

  • Nozzle focusing and cutting
    The stream is concentrated through a jewel orifice and directed through a cutting head.
  • Material erosion and separation
    The high-speed stream erodes the material along the tool path, separating it cleanly.
  • Real-time monitoring systems
    Sensors and controls maintain cut quality and adapt for material inconsistencies.

This process creates precise, burr-free cuts while maintaining the integrity of the surrounding material — a critical factor when dealing with high-stakes infrastructure.

What are the different types of waterjet cutting technologies?

Not all waterjets are created equal. The method you choose depends on the material and the application — and in oil and gas, that range is wide.

Pure waterjet cutting

This technique uses only pressurized water — no abrasive — to cut soft, non-metallic materials.

  • Pros: Clean cuts, no abrasive cost, minimal maintenance
  • Cons: Limited to soft materials like rubber, foam, or food-grade items

Abrasive waterjet cutting

By introducing abrasive particles like garnet into the stream, this method can cut nearly any hard material.

  • Pros: Effective on metals, stone, composites, and clad materials
  • Cons: More expensive, requires abrasive management, higher maintenance

What materials in oil and gas can be cut with waterjets?

From downhole tools to gasket seals, waterjet cutting supports a vast array of materials used in oil and gas operations. Its versatility lies in handling both hard metals and soft, heat-sensitive components without compromise.

Carbon Steel

  • Properties: High strength, corrosion-prone
  • Why waterjet?: Precise without inducing thermal stress

Stainless Steel

  • Properties: Corrosion-resistant, dense
  • Why waterjet?: Maintains edge integrity, no discoloration

Inconel and Nickel Alloys

  • Properties: Extremely tough, heat-resistant
  • Why waterjet?: Avoids microcracking and warping

Titanium

  • Properties: Lightweight, corrosion-resistant
  • Why waterjet?: Prevents work hardening and preserves mechanical properties

Composites and layered materials

  • Properties: Multi-layered, variable density
  • Why waterjet?: Cuts through layers without delamination

Coated or clad metals

  • Properties: Mixed surfaces, differential hardness
  • Why waterjet?: Uniform cutting across layers, no separation

Rubber-lined pipes and gaskets

  • Properties: Flexible, elastic
  • Why waterjet?: Clean cuts without tearing or distortion

Polyurethane and elastomers

  • Properties: Soft, vibration-damping
  • Why waterjet?: Prevents smearing, ideal for custom-fit components

What are the most common applications of waterjet cutting in oil and gas?

Precision Under Pressure

In oil and gas, where downtime is expensive and safety is paramount, the waterjet cutter is used in both planned fabrication and emergency response.

Here are common applications:

  • Flange cutting
    Creates precise bolt-hole patterns and gasket surfaces.
  • Pipe cutting and beveling
    Cleanly cuts thick-walled pipes without heat or spark hazards.
  • Subsea decommissioning
    Safely dismantles structures underwater using remotely operated tools.
  • Casing and tubing cutting
    Enables accurate internal and external cuts without deformation.
  • Cutting explosive or sensitive materials
    Avoids ignition risk when working near flammable or pressurized systems.
  • Maintenance and repair tasks in refineries
    Supports on-site modification with minimal environmental disturbance.

What are the benefits of waterjet cutting in hazardous environments?

Cutting in hazardous zones—onshore or offshore—demands reliability without compromise. Waterjet systems meet this demand through a mix of safety features and operational precision.

  • No heat-affected zones (HAZ)
    Preserves material properties, critical in load-bearing structures.
  • Intrinsically safe (no sparks)
    Ideal for ATEX-rated zones and explosive atmospheres.
  • Subsea and remote deployability
    Can be integrated with ROVs for underwater work.
  • Minimal risk of ignition
    Cold cutting eliminates the primary cause of industrial fires.
  • Accurate and repeatable cuts
    Supports high-precision fabrication under extreme conditions.
  • Low environmental impact
    No fumes, slag, or contaminated runoff.

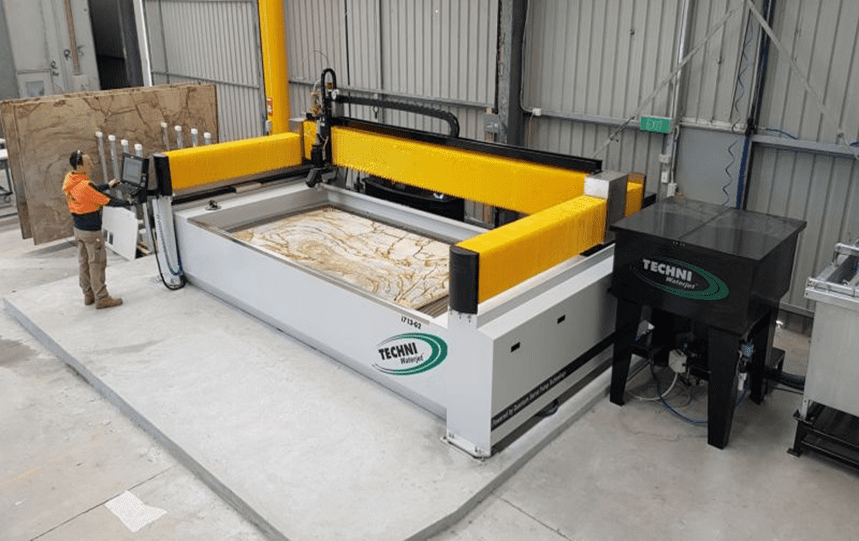

What are the main components of a waterjet cutting system?

A fully integrated waterjet system consists of the following essential elements:

  • High-pressure pump
    Generates water pressure up to 90,000 PSI.
  • Abrasive feed system
    Delivers garnet or other cutting media consistently.
  • Cutting head and nozzle
    Focuses the stream for precision cutting.
  • CNC motion system
    Moves the cutting head accurately along programmed paths.
  • Water catch tank
    Captures runoff and dampens splashback.
  • Control interface
    Allows operators to manage pressure, path, and diagnostics.
  • Filtration/recycling system
    Filters spent water and abrasive for reuse or safe disposal.

What tolerances and thicknesses can waterjets handle in oil and gas applications?Precision Under Pressure

What are the typical tolerances for industrial waterjet cutting?

Waterjets are capable of:

  • Dimensional tolerance: ±0.1 mm to ±0.5 mm
  • Kerf width: ~0.76 mm to 1.2 mm
  • Repeatability: ±0.05 mm, depending on system rigidity and software

How thick can waterjet cutters cut?

  • Metals: Up to 300 mm (12 in)
  • Softer materials: Up to 600 mm (24 in)

Abrasive jets handle harder, thicker materials. Pure waterjets are better suited to thin or soft materials.

How does waterjet cutting compare to other cutting methods in oil and gas?

Let’s break it down by cutting method:

  • Plasma cutting
    • High speed on thin metals
    • Poor in precision, creates HAZ
  • Oxy-fuel cutting
    • Good for thick carbon steel
    • Not safe in explosive environments
  • Mechanical sawing
    • Low cost
    • Limited to simple geometries and access
  • Laser cutting
    • Precise, but can cause thermal distortion
    • Ineffective on reflective or thick materials
  • Wire EDM
    • Extremely precise
    • Requires electrically conductive materials

Waterjets stand out by balancing precision, safety, environmental performance, and material compatibility across the widest range of tasks.

What safety protocols are essential for waterjet cutting in oil and gas?

Safety isn’t optional in this industry. These protocols are standard for waterjet systems:

  • PPE requirements
    Operators must wear face shields, gloves, and high-visibility clothing.
  • Pressure release protocols
    Ensure the system is depressurized before maintenance.
  • Zone clearance
    Keep non-essential personnel away from the cutting area.
  • Monitoring and interlocks
    Built-in failsafes halt cutting if anomalies are detected.
  • Remote operation for offshore/deep-sea cuts
    Reduces human exposure to risk in hard-to-reach or volatile areas.

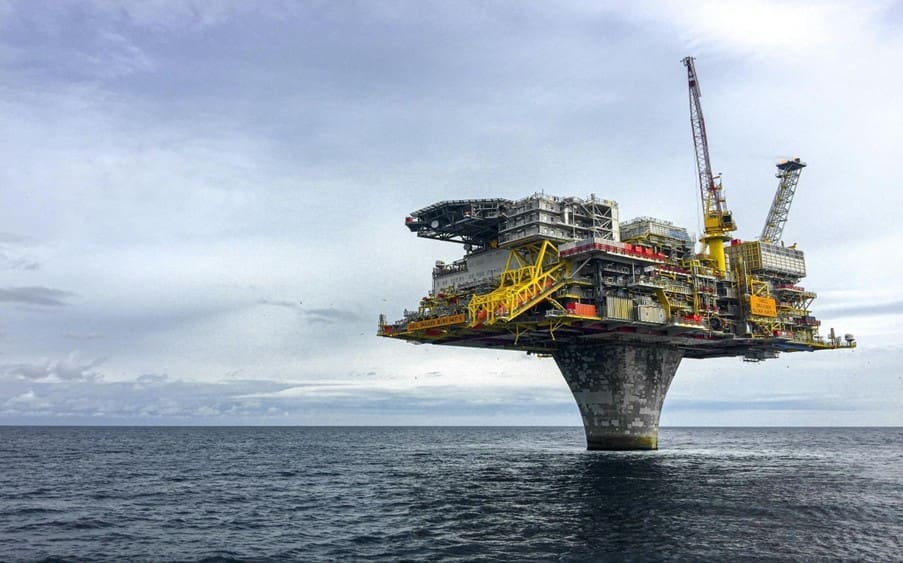

How is waterjet cutting used in offshore and subsea oilfield operations?Precision Under Pressure

Waterjets can be deployed using Remotely Operated Vehicles (ROVs) in subsea environments. These missions often involve:

  • Pipeline and platform decommissioning
    Cutting risers, anchors, and conductors without diver intervention.
  • Emergency interventions
    Fast response to compromised infrastructure.
  • Case studies
    Operators like Shell and BP have used abrasive jets for subsea well abandonment, reducing risk and cost.

What are the design considerations for waterjet cutting in oil and gas?

When designing parts or assemblies meant for waterjet processing, keep in mind:

  • Minimize unsupported sections to prevent movement
  • Use standard tolerances to streamline CNC programming
  • Hole diameter = material thickness for best cut quality
  • Include tabs for holding small parts in place
  • Choose erosion-resistant materials when repeated exposure is expected

What are common mistakes to avoid when using waterjets in oil and gas?

Avoiding these pitfalls will improve safety, precision, and efficiency:

  • Incorrect abrasive ratio
  • Cutting too fast on thick materials, leading to tapering
  • Skipping filter maintenance causes nozzle clogs
  • Not accounting for taper in high-thickness sections
  • Improper clamping or hold-downs leads to misalignment

What should you look for in an industrial waterjet cutter for oil and gas?

Key selection factors include:

  • Max pressure rating: 60,000–90,000 PSI
  • Material compatibility: Support for steel, composites, rubber, etc.
  • Automation level: CNC integration, remote control
  • Abrasive handling system: Efficient feeding and recycling
  • Durability: Corrosion-resistant housings for offshore use
  • Remote operation capabilities: Especially for ROV integration

What’s next for waterjet technology in the oil and gas industry?

As demand for safer and smarter tools grows, expect waterjet systems to evolve through:

  • AI-based cutting optimization
    Real-time adjustment for material changes
  • Smart diagnostics
    Predictive maintenance using IoT
  • Eco-friendly abrasive alternatives
    Reducing waste and sourcing impact
  • Digital twin integration
    Simulating complex cuts before executing on-site

Conclusion

In the unforgiving world of oil and gas, waterjet cutting stands out as a rare fusion of precision, adaptability, and safety. It thrives where other tools fail — underwater, underground, and under pressure.

But it’s not just about what it can cut. It’s about how it cuts — quietly, cleanly, and without compromise. As the industry pushes toward smarter, safer, and more sustainable operations, waterjet technology isn’t just keeping up — it’s leading the charge.

Author Profile
Energies Media Staff
Website
Author Articles
  • Energies Media Staff
    https://energiesmedia.com/author/oilmanwp/
    Drones
    September 8, 2025
    Revolutionizing Renewable Energy with Advanced Drone Technology
  • Energies Media Staff
    https://energiesmedia.com/author/oilmanwp/
    Global Shale Oil and Gas Landscape Set for Growth Beyond US
    August 26, 2025
    Global Shale Oil and Gas Landscape Set for Growth Beyond US
  • Energies Media Staff
    https://energiesmedia.com/author/oilmanwp/
    E-Fuels
    August 13, 2025
    2nd Annual World E-Fuels Summit
  • Energies Media Staff
    https://energiesmedia.com/author/oilmanwp/
    What Happens to Solar and Wind Systems During Natural Disasters?
    August 6, 2025
    What Happens to Solar and Wind Systems During Natural Disasters?
  • Energies Media Staff
    https://energiesmedia.com/author/oilmanwp/
    ship on body of water at night
    August 1, 2025
    Industry leaders to speak at Wood Mackenzie’s Carbon Capture, Utilization and Storage Conference 2025
  • Energies Media Staff
    https://energiesmedia.com/author/oilmanwp/
    ROGII and NRGX Technologies Ltd. Partner to Deliver Seamless LAS Data Integration for Upstream Workflows
    July 31, 2025
    ROGII and NRGX Technologies Ltd. Partner to Deliver Seamless LAS Data Integration for Upstream Workflows
Qatar
ADIPEC

In This Issue

Energies Media Summer 2025

ENERGIES Media (Summer 2025)


Letter from the Managing Editor (Summer 2025)


Maximizing Clean Energy Tax Credits Under the Inflation Reduction Act


Bringing Safety Forward in Offshore Operations


Dewey Follett Bartlett, Jr.: Tulsa’s Champion of Independents


Energies Media Interactive Crossword Puzzle – Summer 2025


U.S. Oil Refineries Face Critical Capacity Test Amid Rising Demand


The Hidden Value in Waste Oil: A Sustainable Solution for the Future


How to Deploy Next-Gen Energy Savers Without Disrupting Operations


ENERGIES Cartoon (Summer 2025)


Why Energy Companies Need a CX Revolution


NeverNude Coveralls: A Practical Solution for Everyday Dignity


Moving Energy Across Space and Time


Meeting Emergency Preparedness and Response Criteria

InventU
InventU
  • Terms
  • Privacy

© 2025 by Energies Media

No Result
View All Result
  • Magazine
    • Digital Magazine
    • Digital Magazine Archive
  • Features
  • Upstream
  • Midstream
  • Downstream
  • Renewable
    • Solar
    • Wind
    • Hydrogen
    • Nuclear
  • People
  • Events
  • Advertise
  • Contact

© 2025 by Energies Media
