Outside Badajoz, Spain, a 50 MW solar plant wired over 50,000 kilowatts of panels to just 39,000 kilowatts of inverters, and that mismatch was built to raise overall output

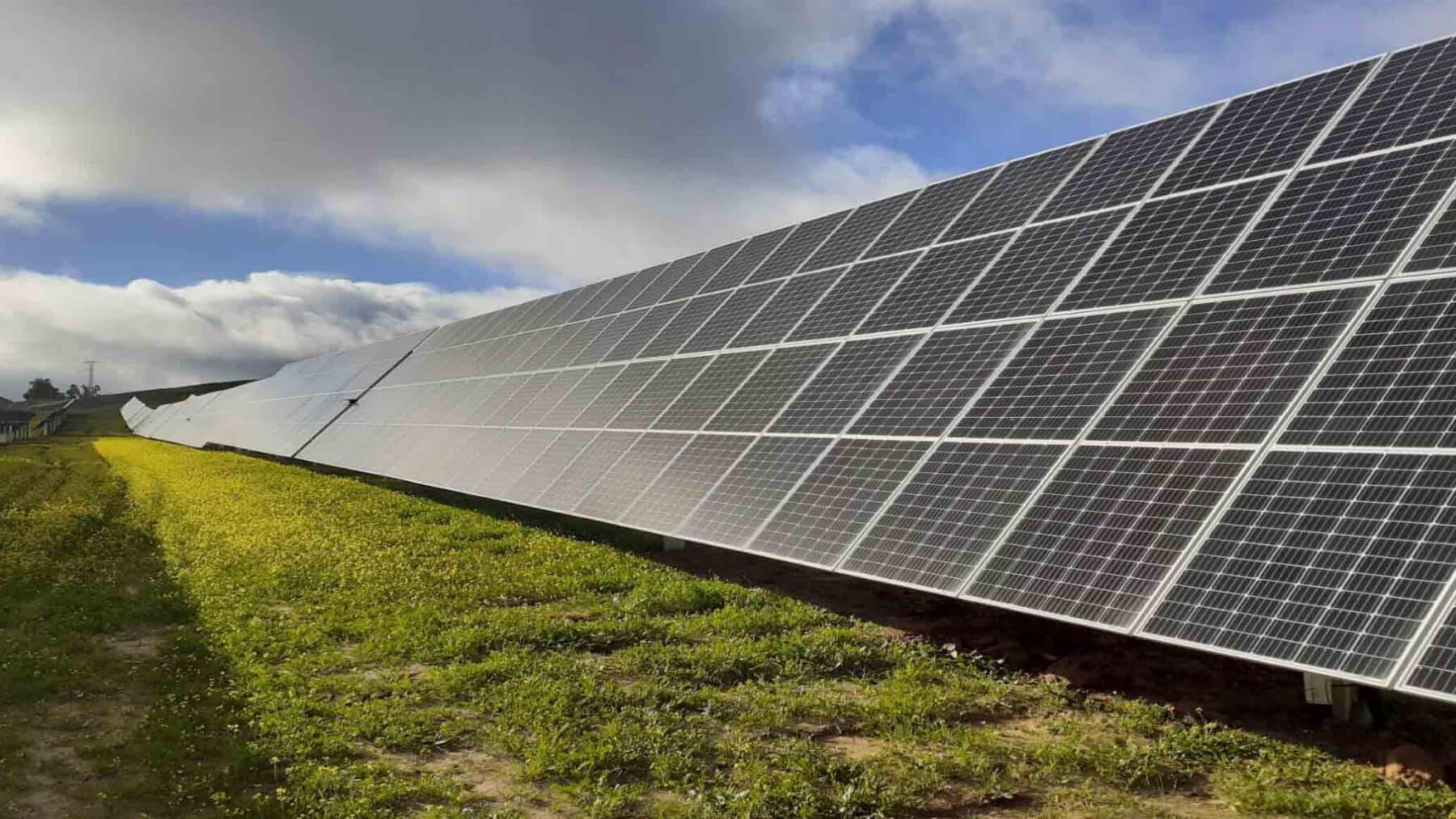

A field of solar panels outside Badajoz carries more wiring than its own inverters can legally swallow at once.
On paper that sounds like a design flaw.
In practice it is the plant’s whole strategy.
The panels, the inverters and the wiring are all catalog parts; only the ratio stamped on the design sheet changed before the first trench was dug.
Ninety two thousand panels feed twenty inverters that, combined, cannot accept all the power those panels can make.
The engineers who built it did that on purpose, chasing a deliberate capacity gap that pays for itself before the sun even climbs high.
What happens when a plant is built to waste some of its own electricity, and why does that waste pay for itself?
Why would anyone undersize the very machine meant to carry the power?
A solar inverter turns the direct current a panel makes into the alternating current a grid will accept, and every inverter has a hard ceiling on how much it can push out at once. The old approach matched that ceiling to the panels almost exactly, a one to one ratio, so nothing was ever wasted and nothing ever throttled.
That made sense when panels were expensive. A watt of silicon in the 2010s cost three to four dollars, so every panel added was a serious capital decision, and nobody wanted spare capacity sitting idle doing nothing for most of the day.
Then panel prices collapsed. As cells became cheap enough to overbuild, engineers realized the inverter, not the panel, was now the expensive, underused part of the plant, since a panel only hits full rated output for a sliver of the day.
So the fix flipped, and plants began installing more panel capacity than the inverters could ever fully carry, choosing a ceiling the array would exceed on sunny afternoons.
What does that mismatch look like on the ground in Badajoz?
The Badajoz plant puts a number on that idea. Its ninety two thousand panels, rated at five hundred forty five watts apiece, add up to just over fifty thousand one hundred forty kilowatts of direct current capacity standing in rows across the plain.
Wired beneath them sit twenty inverter units, each rated at one point nine five megawatts of alternating current, for a combined ceiling of thirty nine thousand kilowatts. That gap gives a loading ratio of about one point two nine, meaning the array can theoretically produce nearly thirty percent more direct current than the inverters will ever send to the grid.
On a clear summer noon, that excess gets clipped, the industry’s word for power the panels generated but the inverter refused. The interesting part comes in the long morning and evening hours, when the sun sits low and the panels alone could never reach that ceiling, so the extra wiring finally earns its keep.
How much does the plant actually gain, and where does the evidence come from?
Modeling from solar engineering analysts at pv magazine, drawing on standard yield simulation software used across the European solar design industry, shows panels rarely operate at their rated maximum because real sunlight keeps them below the factory test standard most of the day. That gap between rated capacity and actual output is exactly what an oversized array is built to close.
Research from the University of Michigan’s Center for Sustainable Systems, examining the same tradeoff with minute level solar data, found that minimal clipping losses occur at an ILR of 1.25, while at an ILR of 2.0, 16% of potential annual generation is lost.
Badajoz, at 1.29, sits just past the safest end of that range, trading a small, measured slice of midday output for a much larger gain across the thinner hours of the day. A separate peer reviewed analysis found the pattern is predictable, since clipping losses follow solar insolation and peak around noon.
As one solar design engineer who works on European utility scale projects put it, “you are not sizing for the one hour of peak sun, you are sizing for the other nine.”
Where does the strategy stop making sense?
The ratio is not a free lunch, and the industry’s own data makes that plain. Push the mismatch further, toward a loading ratio of two to one, and sixteen percent of potential annual generation gets thrown away at the inverter’s doorstep instead of a tolerable sliver.
Climate matters too. A plant in a cloudier region with more diffuse light behaves differently than one on the sunbaked Extremadura plain, because the hours spent near the inverter ceiling shrink when the sky rarely delivers full, cloudless irradiance for long stretches.
There is also a mechanical limit nobody can model away. Every clipping event is a thermal event, current pushed to a ceiling and held there, and that heat cycling is the same stress that shows up decades later as a maintenance bill.
What does this mean for the next plant built on this plain?
None of this requires new hardware, which is what makes the Badajoz approach worth watching. The panels, the inverters and the wiring are all catalog parts; only the ratio stamped on the design sheet changed before the first trench was dug.
That same logic now shapes decisions far beyond solar fields. Grid operators evaluating distributed battery fleets face a similar question of sizing capacity against what equipment can actually move at once, and pumped storage designers choosing turbine counts for projects like the proposed Nevada City station wrestle with the same tradeoff.
Even so, the lesson from Badajoz stays modest, since a ratio of 1.25 to 1.4 is backed by real operating data but no single number fits every site, every climate or every grid contract. The plant on the plain simply shows what happens when engineers stop treating the inverter’s ceiling as sacred and start treating it as one more variable to tune.
